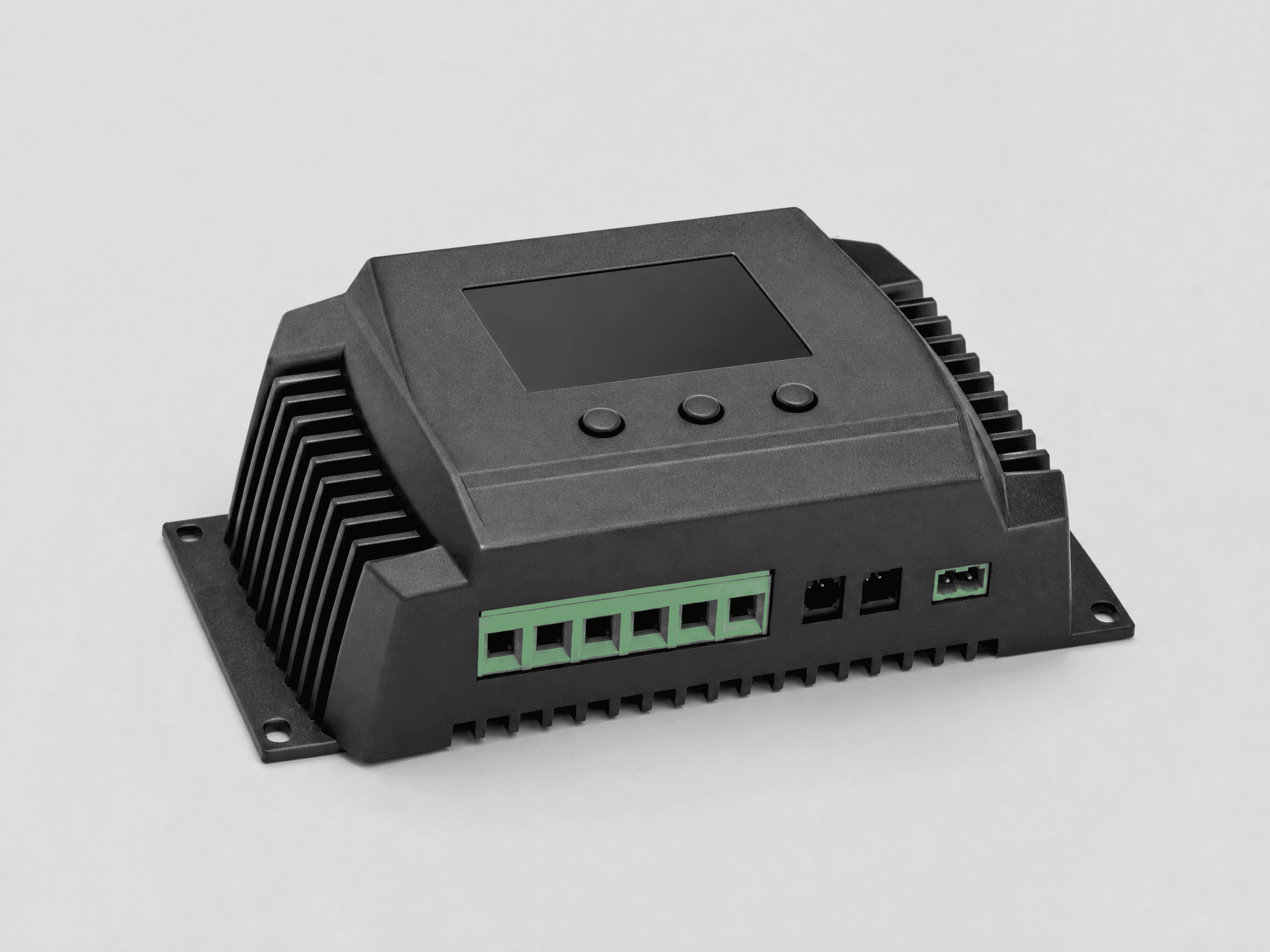

MPPT 40A Solar Charge Controller
MPPT 40A solar charge controller with >=98% efficiency. Auto 12V/24V detection. LCD display. Supports lead-acid, gel, and LiFePO4 batteries.
Technical Specifications
| SKU | HP-SOL-MPPT40 |
|---|---|
| Rated Current | 40A |
| Efficiency | >=98% |
| Auto Detection | 12V / 24V |
| Battery Types | Lead-acid / Gel / LiFePO4 |
| Display | LCD |
| Protection | Overcharge / Over-discharge / Short / Reverse |
| Switching | 150kHz MOSFET |
Key Features
- ✓>=98% peak MPPT efficiency -- 25-30% more energy than PWM controllers
- ✓Auto 12V/24V battery detection -- no manual configuration required
- ✓LCD display shows PV voltage, battery voltage, charge current and status
- ✓Comprehensive protection: overcharge, over-discharge, short-circuit, reverse polarity
Applications
Off-grid solar systems, RV solar charging, remote monitoring stations, agricultural solar pumps.
Request a Wholesale Quote
Fields marked with * are required. Product context is prefilled when you arrive from a product page.
Min. Order
100 pcs
Lead Time
20-25 days
Warranty
12 months
Frequently Asked Questions
Q: What is the MOQ?
A: MOQ is 100 pcs. Volume pricing from 500 pcs with 15% discount.
Q: What is the lead time?
A: 20-25 days for standard orders.
Q: Does it work with 48V systems?
A: This model supports 12V and 24V only. 48V models available on request.
Q: Can I customise the firmware?
A: Yes. OEM firmware with custom charging curves and branding from 500 pcs.
Q: What is the warranty?
A: 12-month warranty against manufacturing defects.
Q: What is the max PV input?
A: 520W at 12V, 1040W at 24V. Open circuit voltage max 100V.
Q: Do you provide mounting accessories?
A: Yes. DIN rail mount and wall mount brackets included from 100 pcs.
Q: Which countries do you export to?
A: 53+ countries including Germany, UAE, Nigeria, Kenya, South Africa, and Tanzania.
